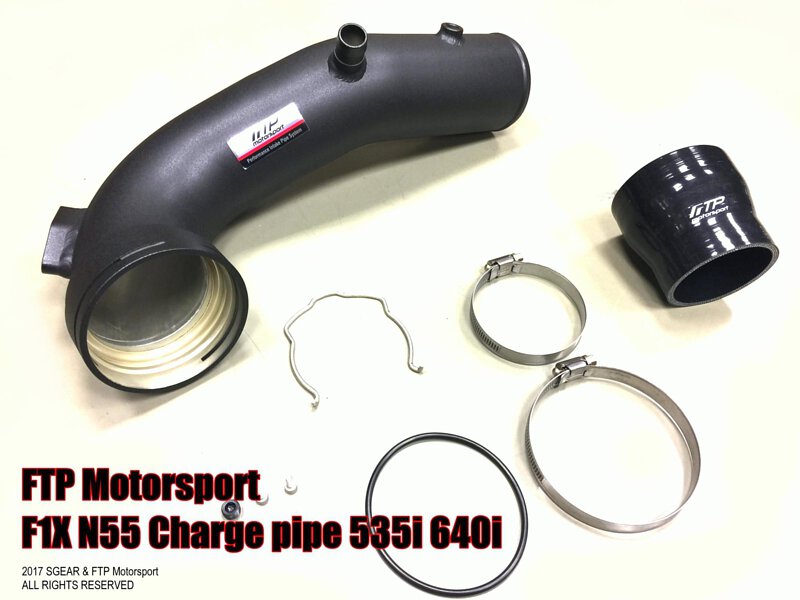

FTP BMW F1X N55 charge pipe

• Type: Intake Pipe
• Size: 3"
• Place of Origin: Taiwan
• Brand Name: SGEAR FTP motorsport
• Model Number: sg71342
• Warranty: 10 Years

PACKAGING

Key Features:

Increase throttle response and decreases turbo lag. Lightweight High Grade 6061 Aluminum Piping.

Replaces the factory soft plastic charge pipe that is prone to breaking under high boost. Throttle body matched 3" piping.

Retains factory style o-ring throttle body lock flange.

Precision CNC machined throttle body flange ensures leak free connection to throttle body.

Quick and easy connection and disconnection to throttle body.

Ideal connection compared to the silicone hose and hose clamp connection found in all other aftermarket diverter valve upgrade pipes available in the marketplace. Precision CNC machined MAP sensor flange ensures leak free connection.

Charge Pipe features beaded ends and T-bolt clamps to prevent intercooler piping from coming off from boost.

 Silicone Hump Hose included.

Compatible with the factory electronic diverter valve.

Includes all hardware for complete installation.

Precision CNC machined throttle body flange ensures boost leak free connection

Precision CNC Machined MAP Sensor Flange ensures boost leak free connection

1/8" NPT Bungs (for methanol or nitrious injectors or our intake temp sensor!!)
