Ohlins 21-23 BMW M3/M4 (G8X) xDrive Road & Track Coilover System

Ohlins 21-23 BMW M3/M4 (G8X) xDrive Road & Track Coilover System

$3,190.00 USD
$3,190.00 USD
Sale Sold out

FITS xDRIVE ONLY!

A more than 40 year long tradition of high-end racing commitments and state-of-the-art solutions within advanced suspension technology is now available for street cars all over the world. The focus has been clear from the very beginning – superior road handling without sacrificing comfort in your day-to-day transports. The time of compromises is over. All shocks have suffered through vast corrosion tests according to ISO 9227. The end result is a worldwide 2-year limited warranty on all Ohlins products.

General Features:

  • Patented DFV technology (Dual Flow Valve)
  • Individual height adjustment
  • Rebuildable
  • Corrosion salt spray tested (ISO 9227)
  • 2 year warranty
  • Approx. 10 kgs less weight compared to standard suspension

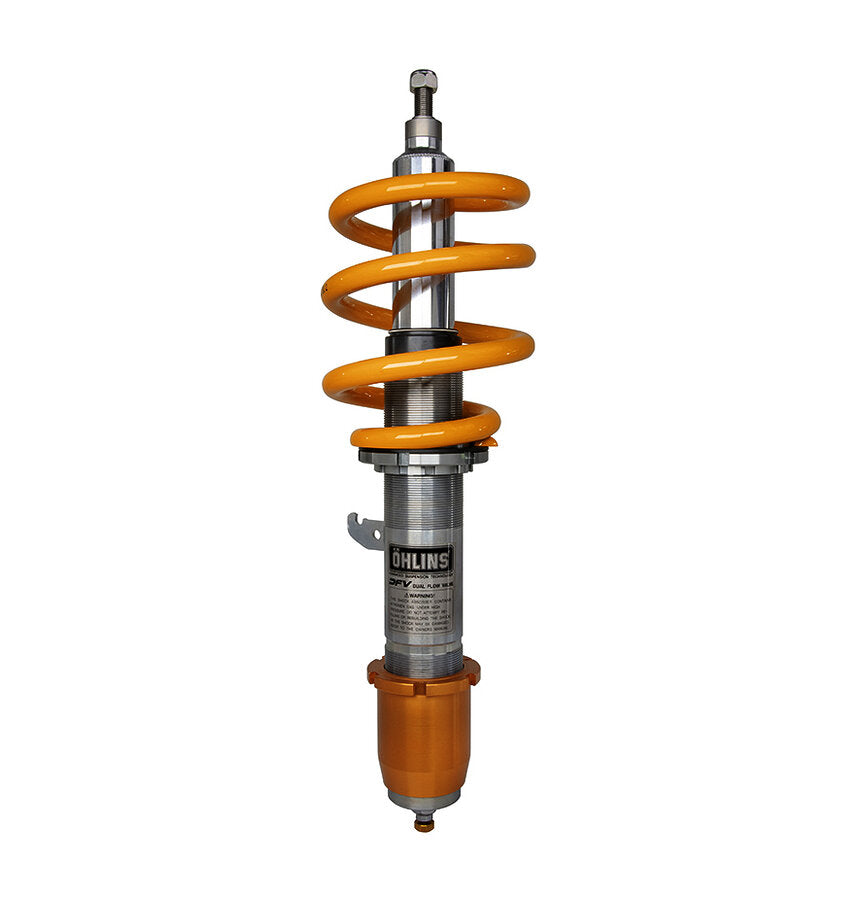

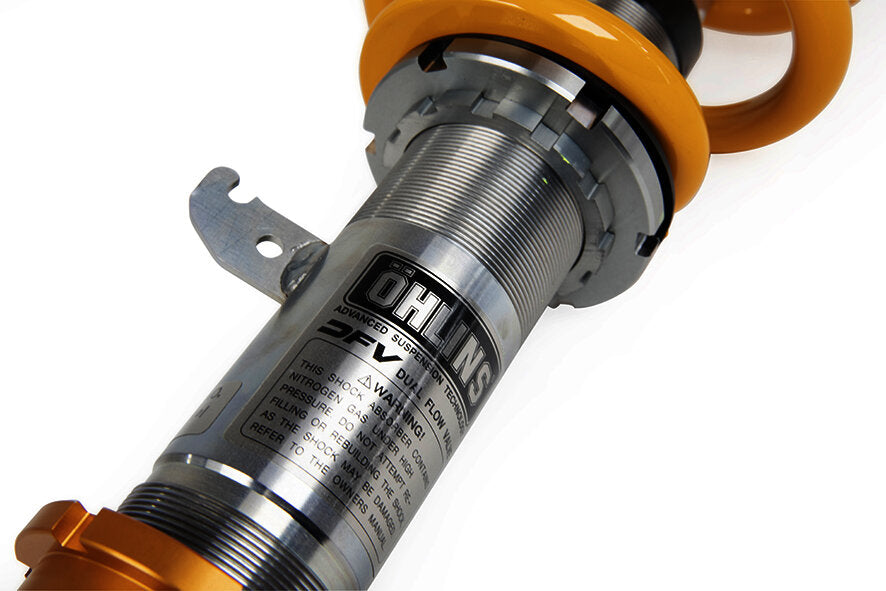

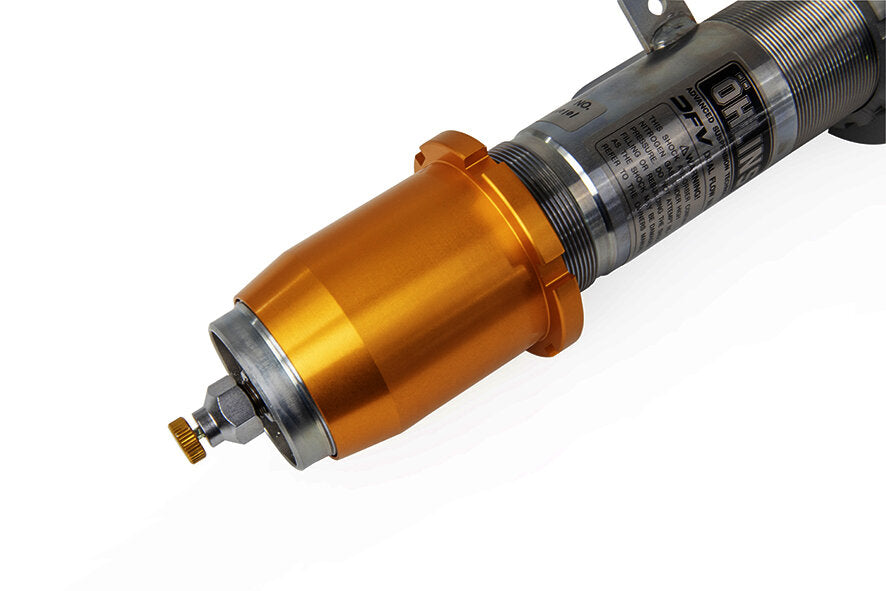

Features Front:

  • McPherson strut, upside down
  • Compression and rebound damping with one adjuster
  • Spring preload adjuster
  • Separate length adjustment
  • Approx. 25 mm lower than standard with recommended setup
  • Spring rate 100 N/mm
  • Use with original top mounts

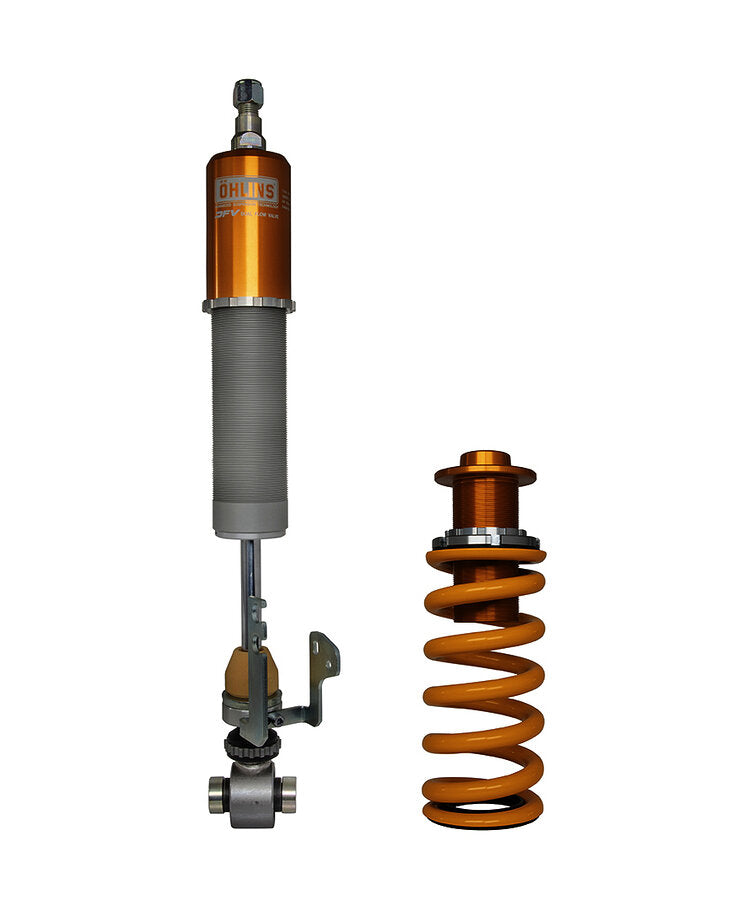

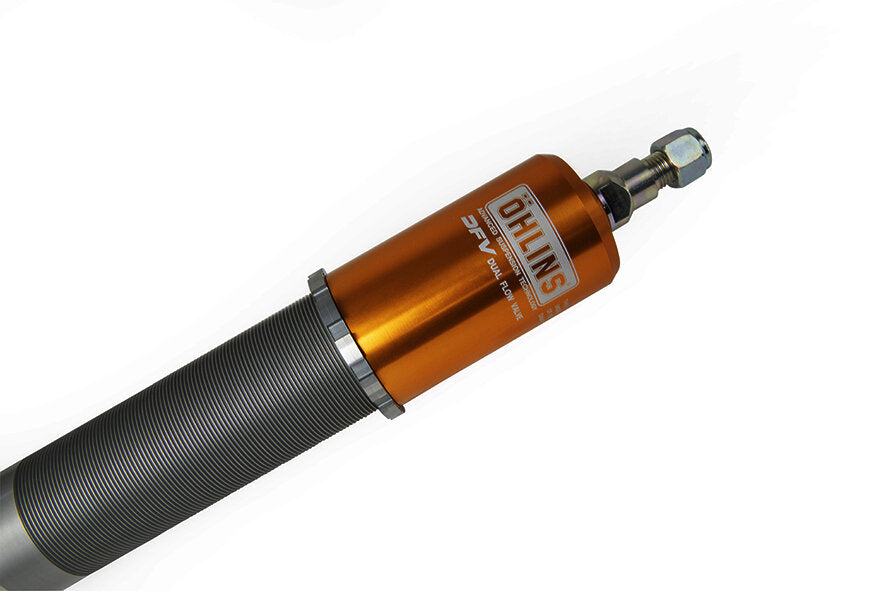

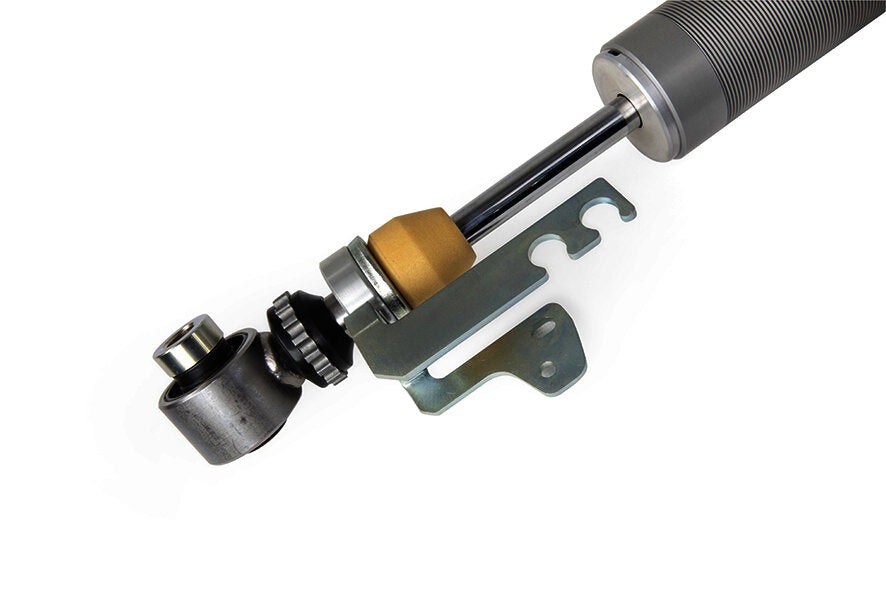

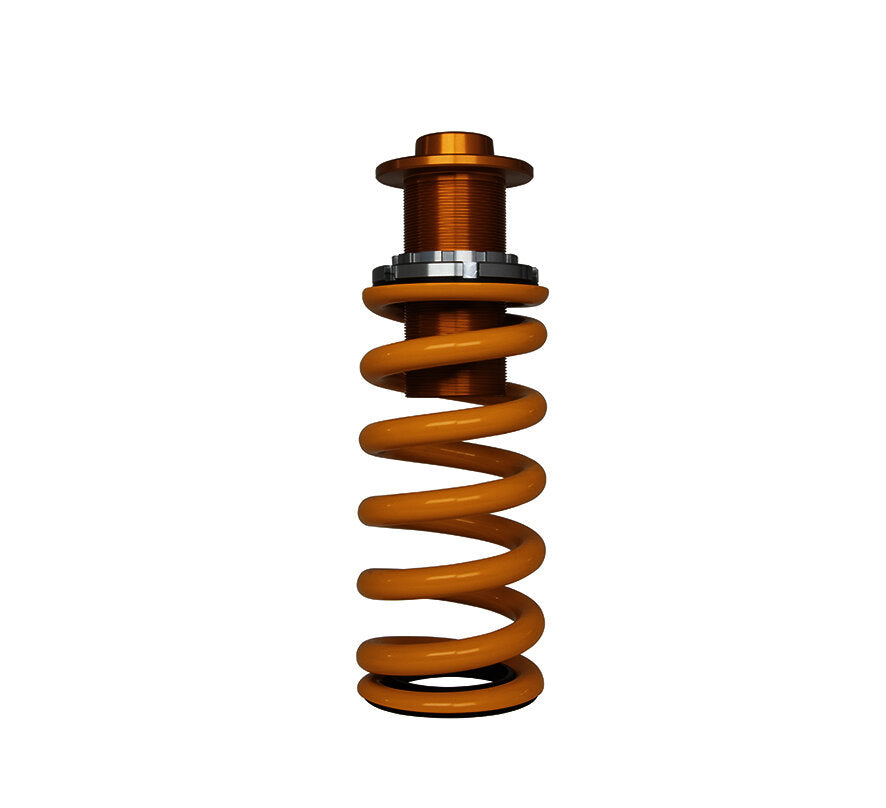

Features Rear:

  • Conventional shock absorber
  • Compression and rebound damping with one adjuster
  • Spring preload adjuster
  • Separate length adjustment
  • Approx. 20 mm lower than standard with recommended setup
  • Spring rate 190 N/mm
  • Use with original top mounts

Purchased Parts Package:

  • Coil over kit incl. springs and mounting parts
  • C-Spanner (for spring preload adjustment)
  • Owners manual and mounting instruction
  • Sticker set

EDC Cancellation Kit:

Cancellation kits are not included and need to be ordered separately.

Fits the following vehicles

Part number

BMS MW10S1
