Skunk2 Racing BMW B58 Alpha Series Connecting Rods (306-14-1000)

Alpha Series Connecting Rods for the BMW B58 engine.

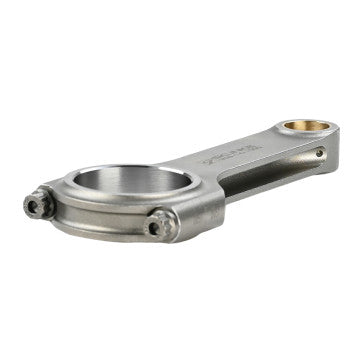

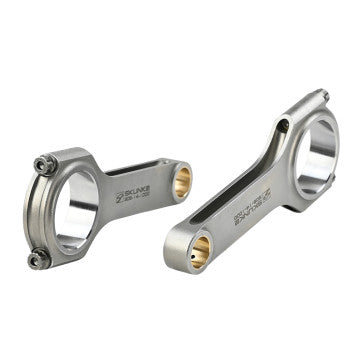

Skunk2 Alpha Series Rods feature an H-Beam design that is precision CNC machined from high-strength aircraft-grade 4340 alloy steel forgings that are then heat treated, tempered, and shot peen stress relieved. Skunk2 Alpha rods come with bronze wrist pin bushings and feature forced pin oiling. Each rod incorporates ARP2000 fasteners rated at over 220,000psi and can handle between 175hp to 200hp per cylinder on average.

Features:

• Forged 4340 Alloy Steel
• Bronze Wrist Pin Bushings
• Forced Pin Oiling
• Shot Peen Stress Relieved
• Balanced to within +/- 1 gram
• 3/8-Inch ARP2000 Rod Bolts Included
• Specifications:

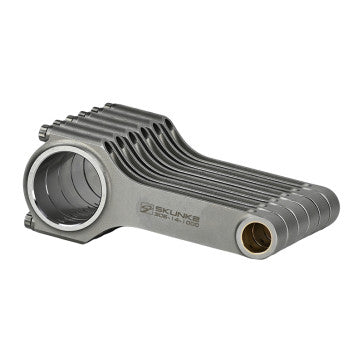

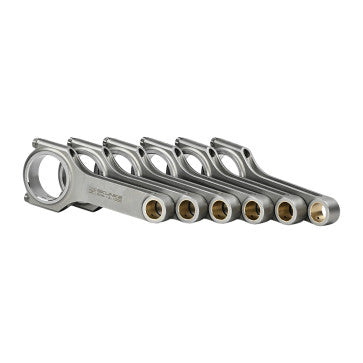

• Set of: 6 rods
• Weight: 688 grams (approx.)
• C-to-C: 140.80 mm
• B.E. Bore: 53.60 mm
• B.E. Width: 23.88 mm
• P.E. Bore: 22.00 mm
• P.E. Width: 20.90 mm
